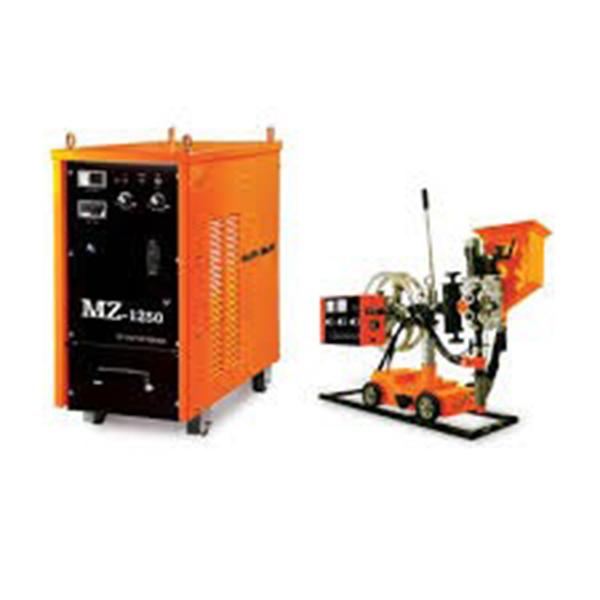

Ralli Wolf MZ1000 (RS100) Submerge ARC Welding
Brand | Ralli Wolf |
|---|---|
Model | MZ1000 (RS100) |
Input Voltage (V) | AC 415 + 15% |
Frequency (HZ) | 50 / 60 |
Rated Input Current (A) | 77.1 |
Power (KVA) | 55.5 |
No - Load Voltage (V) | 72 |
Output Current Range (A) | 112 - 1000 |
Rated Output Voltage (V) | 44 |
Duty Cycle (%) | 60 |
No Load Loss (W) | 300 |
Efficiency (%) | 85 |
Power Factor | 0.93 |
Insulation Grade | F |
Housing Protection Grade | IP 21 |
Arc Force Current Range (A) | 0 - 100 |
Net Weight (Kg) | 85 |
Submerged Arc Welder (SAW) offered from the house of Ralliwolf is the best economical product to achieve high deposition and radiographic quality weld with excellent mechanical properties
RALLIWOLF RS100 & RS125 SAW welders are ruggedly built, high performance machines which can take welding productivity & economy to new heights.
The machine is widely used in welding of heavy duty structures like girder, I-beams, railway under carriage, pressure vessels etc.
The multipurpose power source is suitable for SAW, MMA & Carbon Gouging application.
The Tractor and Welding Head comes with Mechanical clutch for manual movement.
Head swivel & tilting facility.
Suitable horizontal and vertical slides.
4 roll drive wire feed motor for smooth and jerk free wire feeding.
Adequate capacity of flux hopper (10kgs) ensures uninterrupted long weld seams
The state of the art design of the control panel comes with Welding voltage, current & Tractor speed meters, Auto/ Manual Switch for Tractor. Forward/ Reserve switch for Tractor. Stepless speed variation of Tractor. Stepless wire feed variation. Wire inch up / down switch for perfect wire positioning.
Auto change over from creep speed to main speed.
AREA APPLICATION :
Infrastructure / Steel Plants / Railways / Oil & Gas / Power & Energy/ Rebuilding / Heavy Machineries
