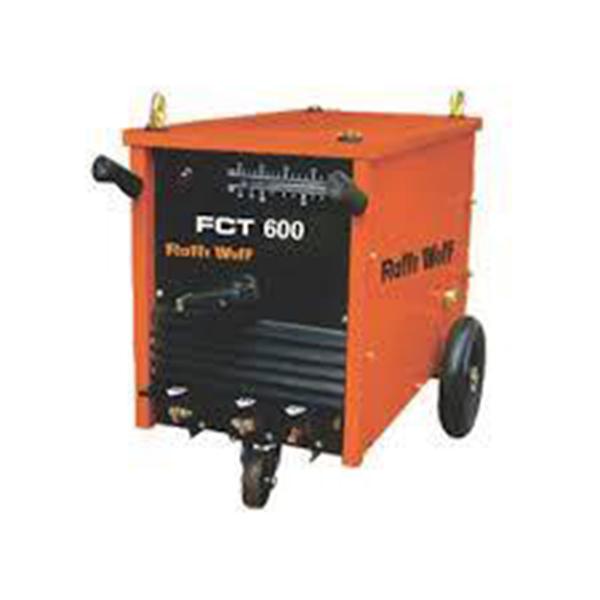

Ralli Wolf ARC600 (FCT600) FCT Series
Brand | Ralli Wolf |
|---|---|
Model | ARC600 (FCT600) |
Supply Voltage | 390/ 415/440 V, ,50Hz, 2 Lines of 3 Phase Supply |
Rated KVA at 60% Duty Cycle | 39 KVA |
Input Current At Rated Output And 415 V Supply | 94 A |
Open Circuit Voltage | 80 V (MAX.) |
Welding Current Range | 60-630 A |
Max. Const. Hand Welding Current At 60% Duty Cycle (Rated Output) | 500 A |
Max. Automatic Welding Current At 100% Duty Cycle | 380 A |
Welding Current Control | Stepless |
Type Of Cooling | Forced Air |
Insulation Class | ‘H’ |
Weight (Approx) | 150 Kg |
Dimension (Approx) L X W X H mm | 830 X 560 X 700 |
Manual Metal Arc Welding (MMAW) AC Power Source / Transformer type Welding Machine offered by RALLIWOLF.
The optimally designed taper moving core system ensures superior dynamic characteristics with smooth and soft arc and minimum spatter.
Because of the uniform current scale the desired current can be set precisely and easily.
The machine conforms to BIS : 1851
Unique Transformer design reduces Eddy Current and hysteresis loss.
The machine is fitted with ON/OFF rotary switch that is seldom found in other make
AREA OF APPLICATION :
Infrastructure / Steel Plants / Railways / Oil & Gas / Power & Energy / Shipbuilding / Heavy Construction
BENEFITS :
Long trouble-free services life.
Longer coil life.
Smooth and soft arc ensures minimum spatter.
Lower electrode consumption.
Precise current setting.
Quicker current adjustment and reduced operator fatigue
Better manoeuverability.
