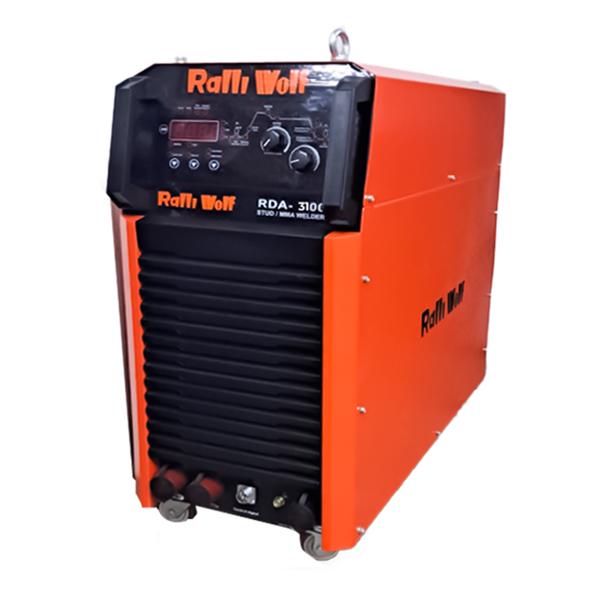

Ralli Wolf RDA3100 97KG STUD WELDING MACHINE (DRAWN ARC TYPE)
Brand | Ralli Wolf |
|---|---|
Model | RDA3100 |
Input Voltage | 400V 15% 3Ph 50/60Hz |
Input Power | 137KVA/130Kw |
Output Range | 250-3150A |
Rated Output | 3150A @84% Duty Cycle |
Stud Dia | ø6-32mm |
OCV | 32VDC |
Dimension (L x W x H) | L: 780 x W: 355 x H: 870mm |
Approx. weight (Kg) | 97Kg |
Benefits :
- IGBT Inverter Technology with excellent line voltage compensation and stepless control of Current.
- Weld Time - 0.01 to 4.0 Sec
- Operator-friendly front panel controls with digital meters
- Simply circuit easy for maintenance.
Application :
- Steel Bridge Mfg.
- Heat Exchanger
- Construction Site
- Deck Sheet Welding
