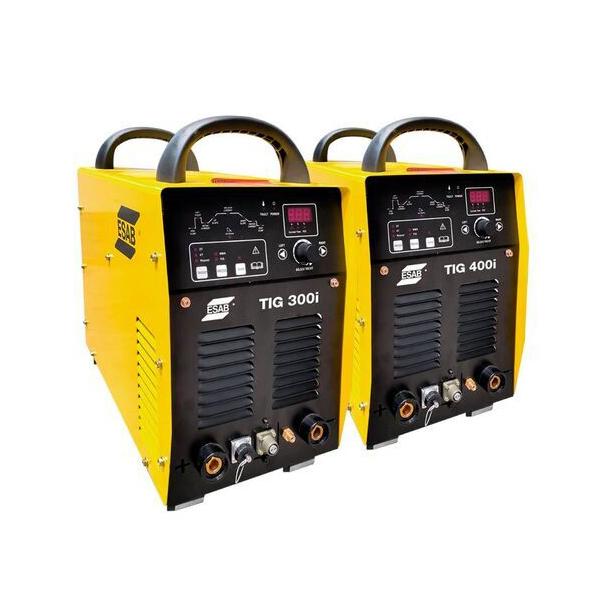

Esab Tig 300i 300A Tig Welding Machine

Brand	ESAB
Model	Tig 300i
Input Voltage	415 V ±10 %, 3 Φ, 50 Hz
GMAW Welding Output	240 A @ 100 % Duty Cycle
GTAW Welding Output	300 A @ 100 % Duty Cycle
Current Range GMAW GTAW	10-250 A 10-300 A
Open Circuit Voltage	76 V
Power Factor at Maximum Current	0.9
Efficiency at Maximum Current	85 %
Operating Temp	-10 to +40 °C
Rated kVA	12 kVA
Enclosure Class	IP21S
Insulation Class	H
Standards	IEC 60974-1
Dimensions, L x W x H	510 x 275 x 420 mm
Weight	35 kg
