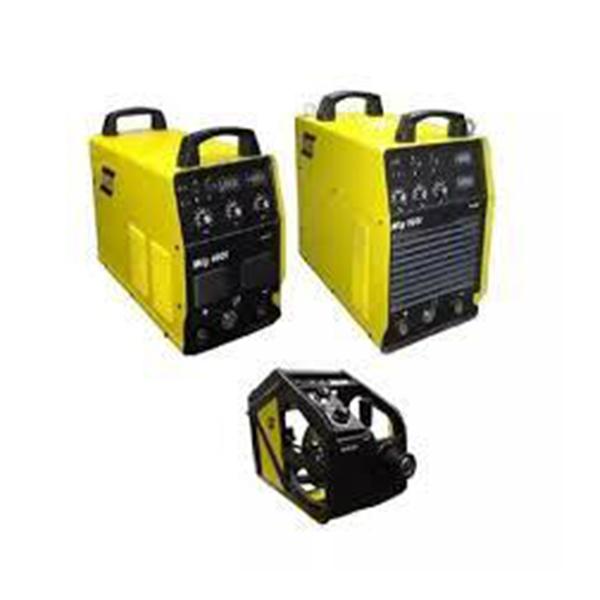

Esab Mig 302i 300A Mig/Arc/Tig Welding Machine

Brand	ESAB
Model	Mig 302i
Input Voltage	415 V +15/-20 %, 3 Φ, 50/60 Hz
Welding Output	300 A @ 100 % Duty Cycle
Current Range MMA MIG	20-300 A 30-300 A
Voltage Range MMA TIG MIG	21-32 V 10.8-22 V 15.5-29 V
Wire Feeder Specifications	1.0 mm/min 0.8 mm/min
Open Circuit Voltage	68 V
Power Factor at Maximum Current	0.88
Efficiency at Maximum Current	90 %
Rated kVA	12.5 kVA
Enclosure Class	IP21S
Insulation Class	H
Standards	IEC 60974-1
Dimensions, L x W x H	535 x 245 x 425 mm
Weight	23.5 kg

MIG 302i is based on inverter IGBT technology that provides reliable equipment with outstanding welding characteristics and easy arc control. The pre-defined parameters with fine adjustment of voltage enables effortless welding making parameter setting extremely easy and user friendly.
