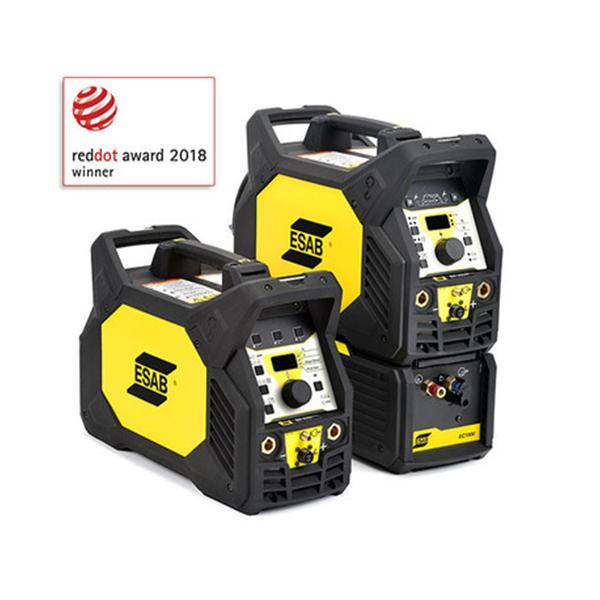

Esab Renegade ET 300 iP 300A Tig Welding Machine

Brand	ESAB
Model	Renegade ET 300 iP
Input Voltage	230 V ±10 %, 1 Φ, 50/60 Hz 230-480 V ±10 %, 3 Φ, 50/60 Hz
Max Output	300 A300 A200 A200 A
Stick (MMA) Welding Output	300 A32.0 V @ 40 % Duty Cycle 250 A30.0 V @ 60 % Duty Cycle 200 A28.0 V @ 100 % Duty Cycle
TIG (GTAW) Welding Output	300 A22.0 V @ 60 % Duty Cycle 250 A20.0 V @ 100 % Duty Cycle
Setting Range	10-22 V (5-300 A) 20-32 V (5-300 A) 10-18 V (5-200 A) 20-28 V (5-200 A)
Current Range	5-300 A
Open Circuit Voltage	48 (Without VRD) V 33 (With VRD) V
Power Factor at Maximum Current	0.96
Efficiency at Maximum Current	88 % 84 %
Fuse Slow	16 A (400 V)
Energy Save Mode	88 W
Supply Plug	CEE 16 A
Enclosure Class	IP23
Application Classification	S
Certification Mark	CE
Dimensions, L x W x H	460 x 200 x 320 mm
Weight	16.9 / 26.9 kg
