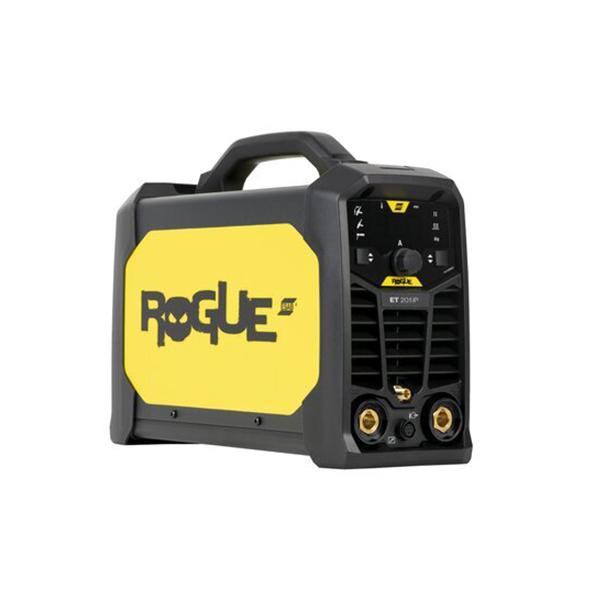

Esab Rogue ET 201ip 200A Tig Welding Machine

Brand	ESAB
Model	Rogue ET 201ip
Input Voltage	230 VAC ±15 %, 1 Φ, 50/60 Hz
Max Output	230 VAC230 VAC
Stick (SMAW) Welding Output	200 A28.0 V (230 V) @ 25 % Duty Cycle 129 A25.2 V (230 V) @ 60 % Duty Cycle 100 A24.0 V (230 V) @ 100 % Duty Cycle
TIG (GTAW) Welding Output	200 A18.0 V (230 V) @ 25 % Duty Cycle 129 A15.2 V (230 V) @ 60 % Duty Cycle 100 A14.0 V (230 V) @ 100 % Duty Cycle
Setting Range	20-200 A 10-200 A
Current Range Stick (SMAW) TIG (GTAW)	10 - 200 A 20-200 A
Open Circuit Voltage	63 V
Power Factor at Maximum Current	0.63
Efficiency at Maximum Current	89 %
Energy Save Mode	50 W
Operating Temp	-10 to +40 °C
Rated kVA	6 kVA
Enclosure Class	IP23S
Insulation Class	H
Dimensions, L x W x H	403 x 153 x 264 mm
Weight	8.7 kg
